Q & A Tire machine changer

🔹 Models QT-E3-609 and QT-E3-610
(Vertical automatic tire changers)
Support wheel rim sizes from 12 inches to 24.5 inches.

🔹 Models QT-EPC and QT-BPHC
(Horizontal tire changers)
Support rim sizes 17.5, 19.5, and 22.5 inches.
(The mounting head for these sizes comes with the machine.)

This model can also change:
✅ 16-inch rims
✅ 4-wheel vehicle rims

Customers can order extra mounting heads if needed.

Yes.

The QT-E3-610 vertical tire changer and the QT-EPC and QT-BPHC horizontal tire changers are specially made for removing and installing tires on:

• 6-wheel trucks

• 10-wheel trucks

• Trailers

• Buses

• Large transport vehicles

These machines are designed especially for heavy-duty vehicles.

Yes.

The vertical tire changers QT-E3-609 and QT-E3-610,
and the horizontal tire changers QT-EPC and QT-BPHC,

can remove and install both:

• Steel rims

• Aluminum alloy rims

These machines work safely with both types of wheels. 🚛🔧

• Vertical models (609, 610): 3KV power.

• Horizontal models (EPC, BPHC): 4KV power.

• Model QT-EPC: Uses normal home power (220V).

• Model QT-E3-609 & 610: Uses factory power (380V).

• Need home power (220V) for these models? Pay 5,000 Baht more to change it.

• QT-EPC (Horizontal): Uses 220V (Normal plug).

• QT-E3-609 & 610 (Vertical): Use 380V (Industrial power).

• Need 220V for Vertical? Yes, you can! But it costs 5,000 Baht more to change the motor.

Model QT-EPC: It uses 8-10 bars of air. It only needs a little air to lift the tire.

Model QT-BPHC: It uses more air, 12 bars or more. It needs extra power to spin the motor and lift the tire at the same time.

“The more you practice, the faster you can change a tire.”

Our Tire Changers (QT Series):

• Vertical Models (QT-E3-609 & 610): Fit wheel sizes from 12″ to 24.5″.

• Horizontal Models (QT-EPC & QT-BPHC): Can hold up to 300 kg.

Why choose us? Even a heavy tire (like the 11R22.5) only weighs about 105 kg. This means all our machines can handle your tires easily and safely!

“Our QT Series tire changers (Vertical & Horizontal) are built super strong for 24/7 heavy-duty work. They can easily handle huge truck tires up to 300kg. Their strength is so high, it’s beyond words!”

Vertical Models (QT-E3-609, 610): These automatic machines use a center-hole locking system. This protects your wheels and prevents scratches on the rims and surfaces.

Horizontal Models (QT-EPC, QT-BPHC): We recommend placing a rubber mat on the machine floor. This prevents the wheel face from hitting the metal surface, which most professional tire shops already do to keep the wheels safe.

QT-E3-609 and 610 vertical tire machines use easy-to-use hydraulic hand levers.

The QT-E3-609 and 610 vertical tire changers are very easy to use. Even if you are not a mechanic, you can change tires without getting tired. The machine does the heavy work by lifting and moving the tire for you. You just need to pick the right tool head from the post above the tire to push or pull. It is simple and saves you a lot of energy!

Vertical Tire Changer Models:

The QT-E3-609 weighs 680 kg, and the automatic QT-E3-610 weighs 696 kg. Because these machines are very heavy, you must use a forklift or a crane to move and install them.

Vertical Tire Changers (QT-E3-609 and QT-E3-610): The English manual is available now. The Thai manual is coming soon!

We have instruction videos for the QT-E3-609 and QT-E3-610 (Automatic Locking) vertical tire changers. Please ask our team to send them to you!

For the Vertical Tire Changers (QT-E3-609 and QT-E3-610):

We have videos showing how to use the QT-E3-609 and QT-E3-610 (Auto-Lock) vertical tire changers. They are very easy to operate!

We have videos showing how to use the QT-E3-609 and QT-E3-610 automatic tire machines. These vertical machines are very simple and easy to operate.

Installation time for the QT-E3-609 and QT-E3-610 (Automatic Vertical Tire Changers):

These models use a 380V electrical system. The installation speed depends on how experienced your electrician is with this specific power setup.

Vertical Tire Changers (QT-E3-609 & QT-E3-610): These automatic locking machines come with a 1-year warranty.

Vertical Tire Changers (QT-E3-609 and QT-E3-610): These automatic locking machines are made in China using Japanese technology.

Vertical Tire Changers (QT-E3-609 and QT-E3-610): These automatic locking machines are made in China using Japanese technology. They meet high global standards with CE and ISO certifications.

Our tire machines (Models: QT-E3-609, 610, QT-EPC, and QT-BPHC) are built extra strong for heavy-duty use. They can work 24/7 and support up to 300 kg, making them perfect for large trucks.

Use Hydraulic Oil No. 32.

Vertical tire machines (Models: QT-E3-609, 610) are very quiet. The noise level is less than 70 decibels.

The QT-E3-609 and 610 automatic vertical tire machines use 3 kW and 6.5A. For such large machines, they are very energy-efficient.

Our automatic vertical tire machines (QT-E3-609, 610) offer great value. They work with many wheel sizes and are very easy to use. These machines do the hard work for you, so one person can easily handle more jobs without getting tired.

The prices for our automatic vertical tire machines (QT-E3-609 and 610) already include all the tools and equipment you need. They are ready to use right away.

We offer 4 tool packages for starting your tire shop or garage. Please contact our company for more details.

Free delivery within 50 km of our company. For distances over 50 km, the delivery fee is 15 THB per kilometer. For international shipping, please contact our sales team for more details.

Delivery in Thailand takes 1-2 days. For international shipping, please contact our sales team for more information.

Our tire machines are used by customers all over Thailand. If you are interested, you can ask us for references in your area to see the real machines in action before you decide to buy.

You are welcome to see our machines in action before buying! Visit us at:

Quality Impex Co., Ltd. 35 Yaek 12, Soi On Nut 88, On Nut Road, Prawet, Prawet, Bangkok 10250

Contact: 081-8541580, 086-3266250 (Khun Somsri)

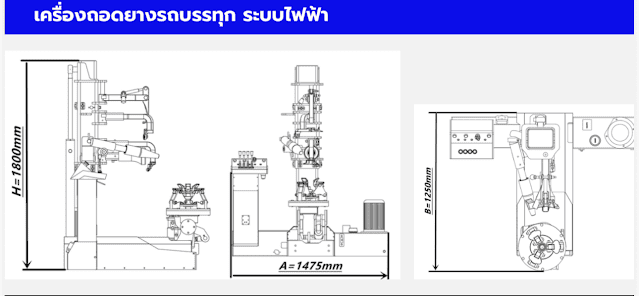

Size: 1480 x 1130 x 1800 mm

696 kg.

This machine must be packed in a wooden crate to protect it from damage during transport.

This machine must be packed in a wooden crate to protect it from damage during transport.

If you order many machines, they can be packed into a 20-foot or 40-foot container.

If the quantity of goods is small and cannot fill a whole container, you can choose LCL (Less than Container Load). This means your goods will share a container with goods from other customers.

But if the quantity or volume of goods is large enough to fill a full container, you can choose FCL (Full Container Load). This means the whole container is used only for your goods.

You should ship the products by sea because it is much cheaper.
The shipping cost is not as high as sending by air.

Shipping to Europe takes about 20 days.

Please check with our sales team for the final price, as international shipping costs may vary.

The insurance covers damages based on international shipping standards used worldwide.

Every international order must have an Invoice and a Packing List.

The H.S. Code is in Form-E, but we cannot issue this form because Thailand is not the country of origin. We act as a quality control center to inspect and certify the machines before exporting them.

We do not provide a Certificate of Origin because Thailand is our main hub for quality control and final inspections before we export our products.

The Model 610 can be customized with a specific motor to match your country’s power supply. Please let us know your requirements, and we will update the motor specs for you.

Power supply by region:

Yes, it is available.

It varies by country.

“The customer will handle customs clearance and pick up the goods at the destination.

The customer will handle the unloading at the destination.

You can use any of these options, depending on how formal you want to be:

Simple & Clear: “We have 3 options: EXW, FOB, and CIF. Tell us which one you like, and we will send you the price.”

Professional yet Easy: “We offer EXW, FOB, and CIF. Please let us know your choice, and we will prepare a quotation for you.”

Quick Tip:

• EXW: Customer picks up from the factory.

• FOB: We deliver to the port.

• CIF: We pay for shipping and insurance to your country.

Not included.

No Door-to-Door service because the items are too big and heavy for one person to lift.

Forklift required.

We do not provide on-site installation. Customers will need to hire local technicians, and we will provide the installation and user manuals for you.

Insurance covers sea freight only

Your shipping is covered by the insurance in the CIF price.

If the machine is damaged during shipping, we can claim with the insurance.

None

Yes, we do

We have it

No, because Thailand is only a quality check center for export

Not recommended to separate.

Too heavy for one person to lift.

The customer pays for this.

The customer pays for this

You can use your own import agent.

None.

No, because the items are very big and weigh hundreds of kilograms.

ต่างกันมาก ต้นทุนSea Freightจะถูกกว่าต้นทุนAir Freight

“If we offer CIF terms (Cost, Insurance, and Freight):”

Under CIF, the seller is responsible for:

• The cost of the goods

• Marine insurance for the shipment

• Freight charges to the destination port

The seller handles and pays for everything—transportation and insurance—until the goods reach the agreed destination port.

We accept payment via T/T (Bank Transfer) only.
For international orders, we accept payment via T/T (Bank Transfer) only. Please send the payment to our company account in Thailand.

Please pay by T/T. We will send you our bank details, including the SWIFT code.

T/T and SWIFT are not different systems; they are just different parts of the same transfer process.

T/T stands for Telegraphic Transfer, which means a bank transfer.
International Bank Transfer

It is a bank transfer from the customer’s account to your company account. Currently, T/T uses the SWIFT system to send transfer instructions.

SWIFT (Society for Worldwide Interbank Financial Telecommunication)

It is a global banking network used to send international money transfer orders.

To put it simply:

• T/T = The payment method.

• SWIFT = The system used to send the money.

So, when you make a T/T transfer, you are using the SWIFT network.

Kasikornbank Public Company Limited

Please provide the sender’s IBAN (International Bank Account Number) for this international transfer.

Transfer in USD

It’s possible, but I don’t recommend it. Since the price is in USD, you should transfer in USD.

OUR: The sender pays all bank fees. This includes the sending bank, intermediate bank, and receiving bank fees. The receiver gets the full amount shown on the invoice.

It’s about 25 – 60 USD per transaction (on average).

Corporate Accounts (Business)

• Limits: Usually $1M – $10M+ per transfer.

• No Cap: Some banks have no limit if all documents are ready.

• Machinery: Paying $100k+ for machines is no problem.

Individual Accounts (Personal)

• Limits: Usually $50,000 – $250,000 per day.

• Restrictions: Some countries have strict laws on sending money abroad.

By Country

• USA: Businesses can send millions; Individuals are usually limited to $100k – $500k.

• Europe: Very high limits, but transfers over €10,000 usually require proof of funds.

• China: Individuals are limited to $50,000 per year. Businesses can pay based on Invoices and Contracts.

• Thailand (Receiving): No limit on receiving money, but banks may ask for documents for large amounts.

“When to use each document:”

• Proforma Invoice: Use before production or for deposit payments.

• Commercial Invoice: Use before shipping the goods.

• Contract: Use for countries with strict currency controls.

• Payment for goods

• Payment for industrial equipment

• Machinery purchase

• Advance payment

• Balance payment

“In the USA, ‘Wire Transfer’ is the common term for sending money through a bank, both locally and internationally.”

Payment by T/T only.

Ideal for large bulk orders.

None.

The customer is responsible for all local fees and taxes.

No, we require a 30% deposit to confirm your order, and the remaining 70% is due when the goods are ready to ship from the factory.

A 30% deposit is required to confirm your order, and the remaining 70% is due when the goods are ready to ship from the factory.

“What documents should the company issue after receiving payment from overseas? There are 3 main types.”

1. Official Receipt This confirms that the company has received the payment.

It should include:

• Company Name, Address, and Tax ID

• Date of payment

• Customer Name

• Invoice / Proforma No.

• Amount and Currency

• Payment Method (T/T – SWIFT)

• Signature and Company Stamp

Used for:

• International customers

• Deposit payments

• Full payments

This is a formal confirmation letter.

Commonly used for:

• Bank submissions by the customer.

• Supporting Letter of Credit (L/C) documents.

• Applying for import licenses.

• Stamp “PAID” on it.

• Include the payment date.

• Use it together with the receipt.
